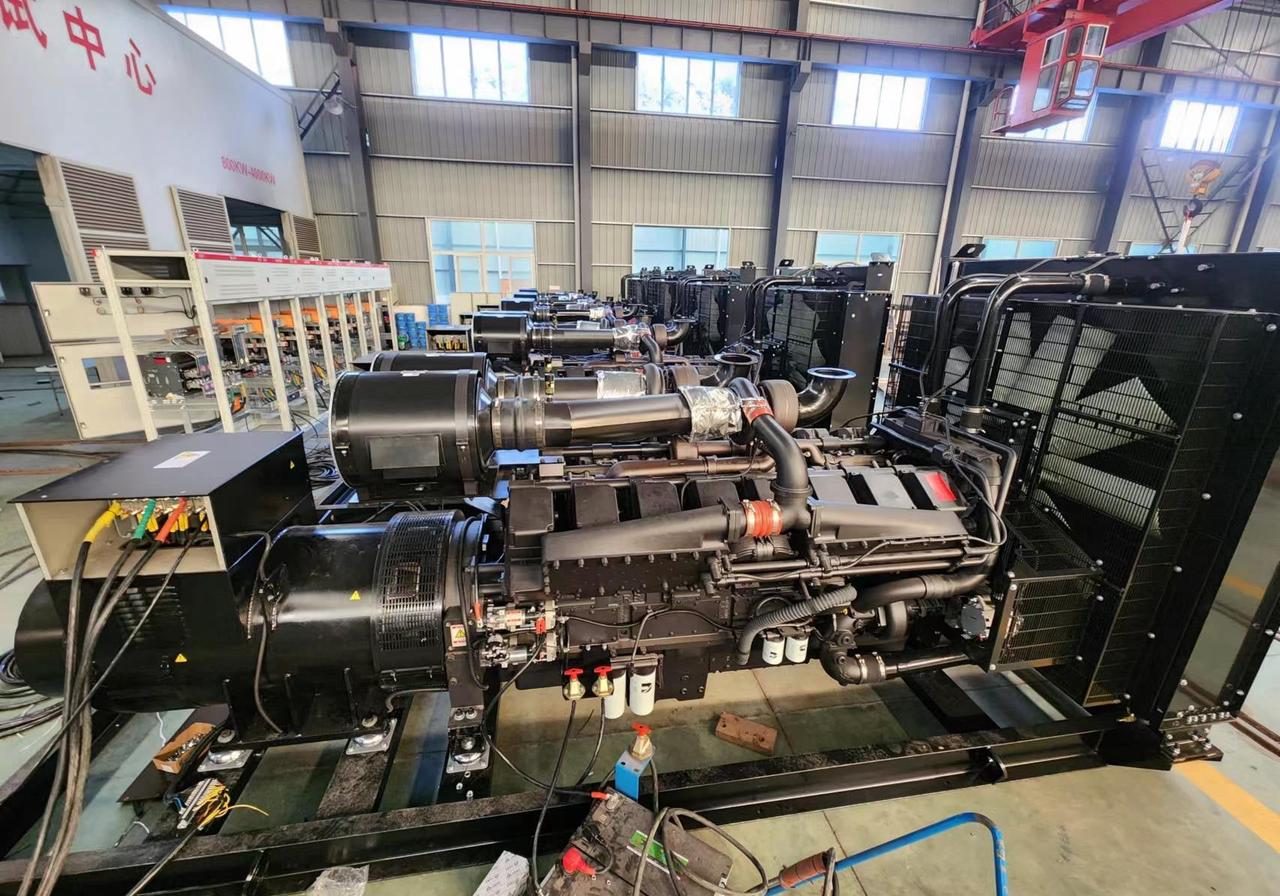

7ae21b94-7e43-4641-81c8-0107282a9ebd

Indonesia Tier III Data Center Emergency Power Project

See how Haifeng Power help deploy five 1000kW diesel generator sets in parallel to establish a highly reliable backup power system that ensures zero downtime in case of utility failure of a data center.

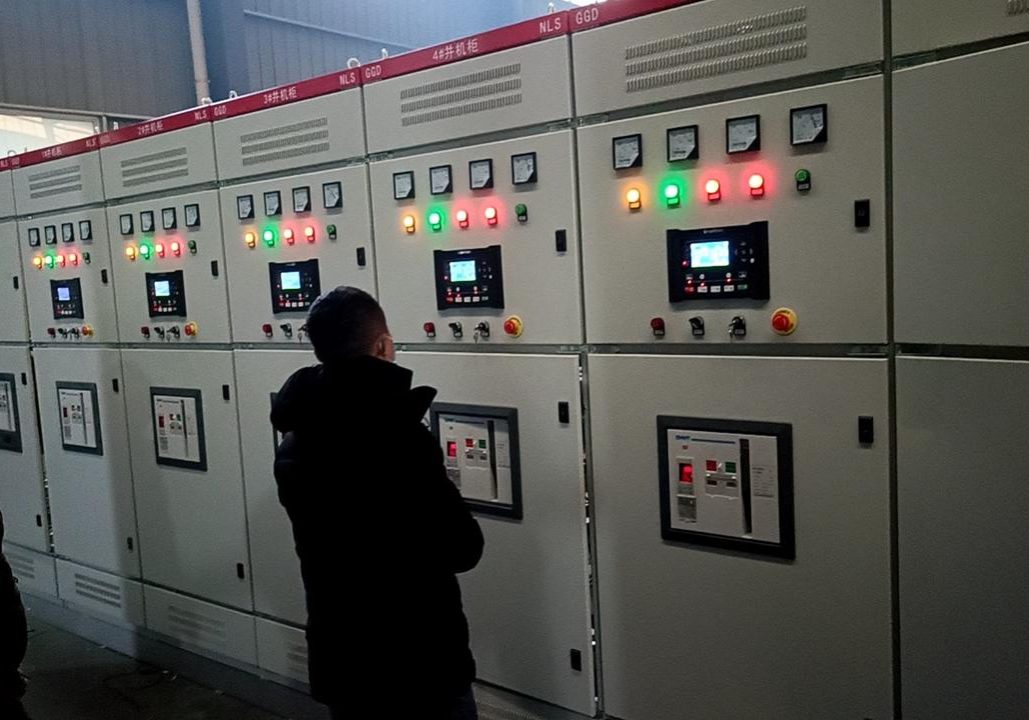

1280X1280 (6)

Project Background

With the rapid development of Indonesia's digital economy and internet services, large-scale data centers have become critical infrastructure.



This project involves a core data center operated by a global cloud service provider. Built to Uptime Tier III standards, it demands N+1 redundancy, high availability, and seamless backup power capabilities.

The solution

5 × HF-1000GF Diesel Generator Sets

Engine: Cummins KTA50-G3 (renowned for stability and durability)

Alternator: Stamford HCI634F with PMG excitation and AVR regulation

Operating Mode: Auto Start, Auto Parallel, Auto Load Share

Output: 400/230V, 3-phase, 50Hz

Installation: Open-type with external soundproof enclosure integrated into the facility layout

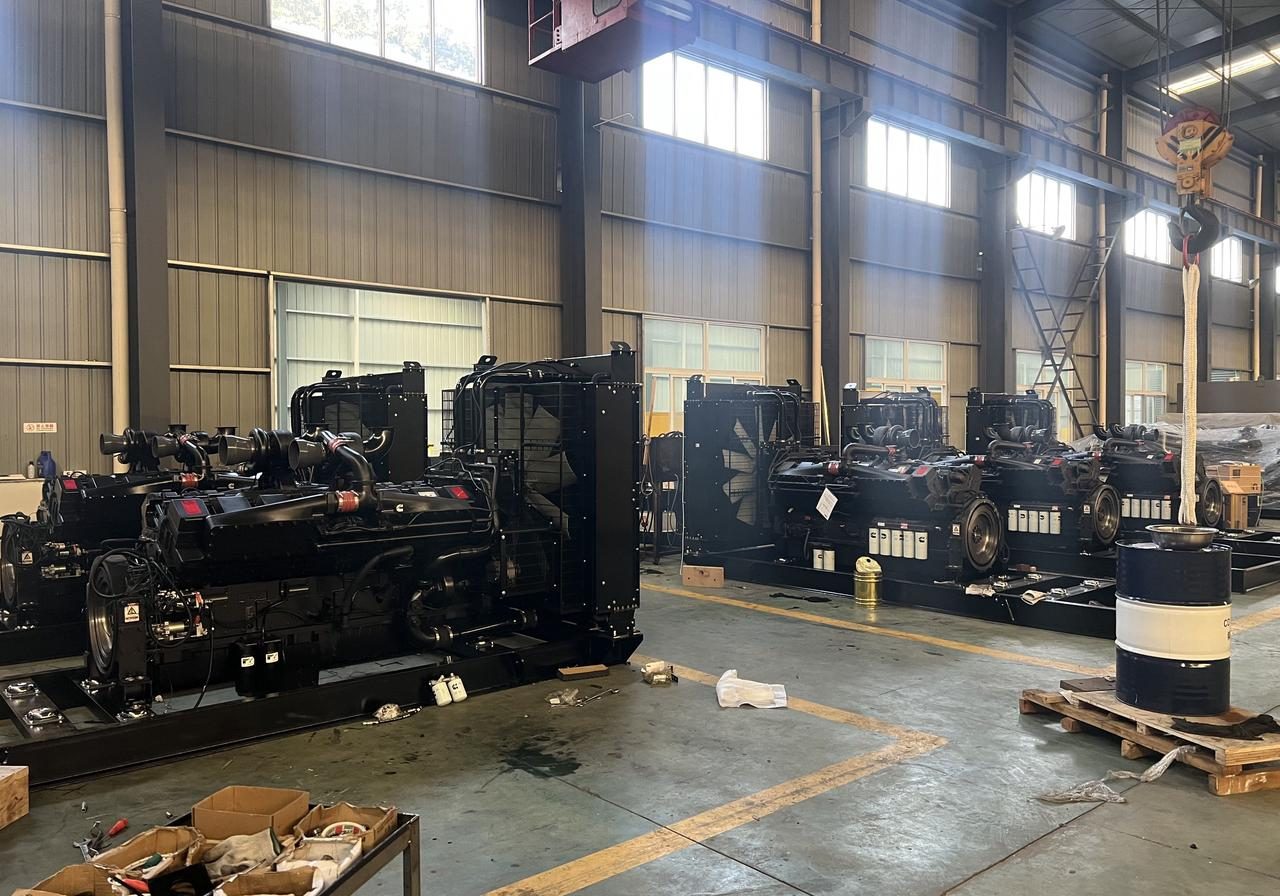

83b3ea19-7b7f-4743-8f95-7d6b12843510

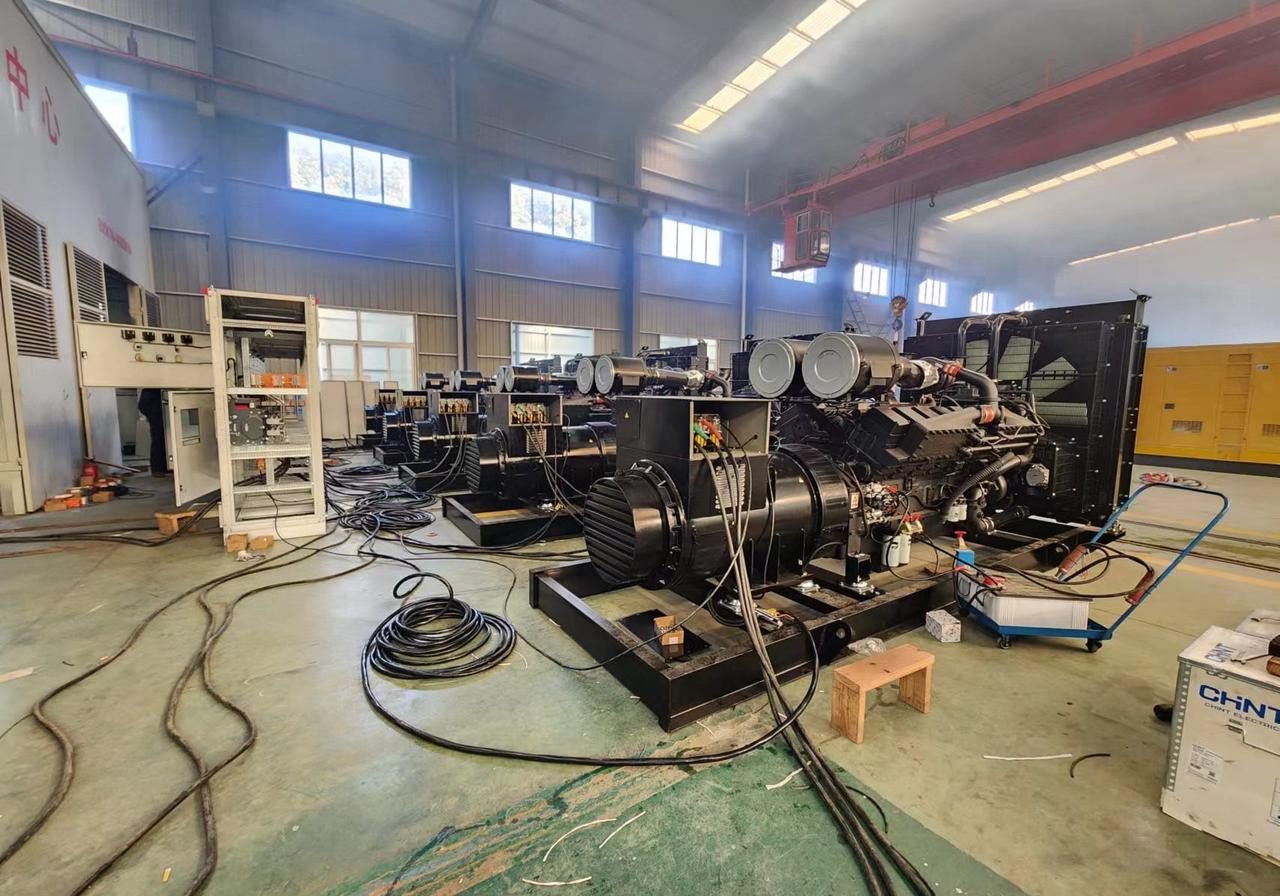

986f46a7-2513-4240-af4d-bedd61b74753

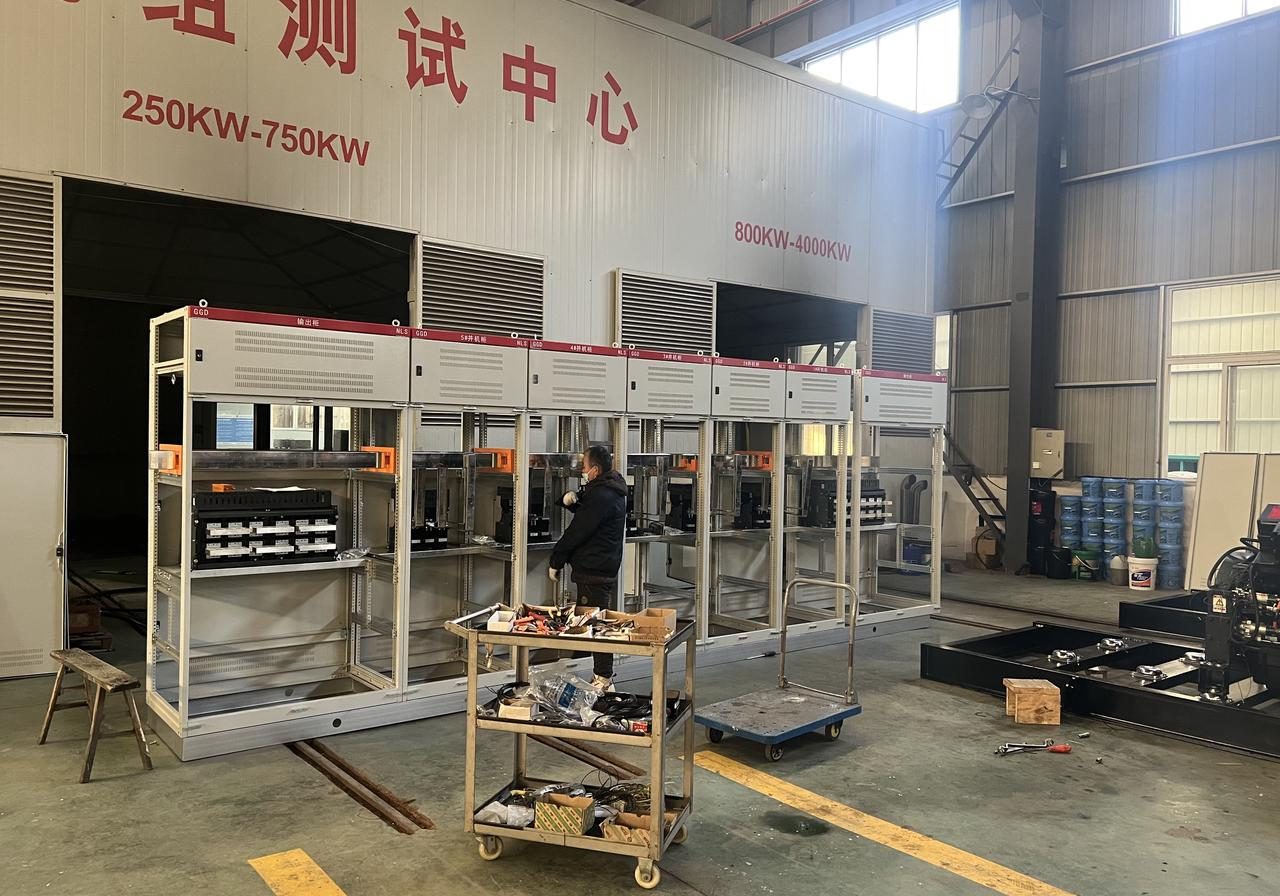

216a447a-bd5b-4018-97b5-704d5d83747e

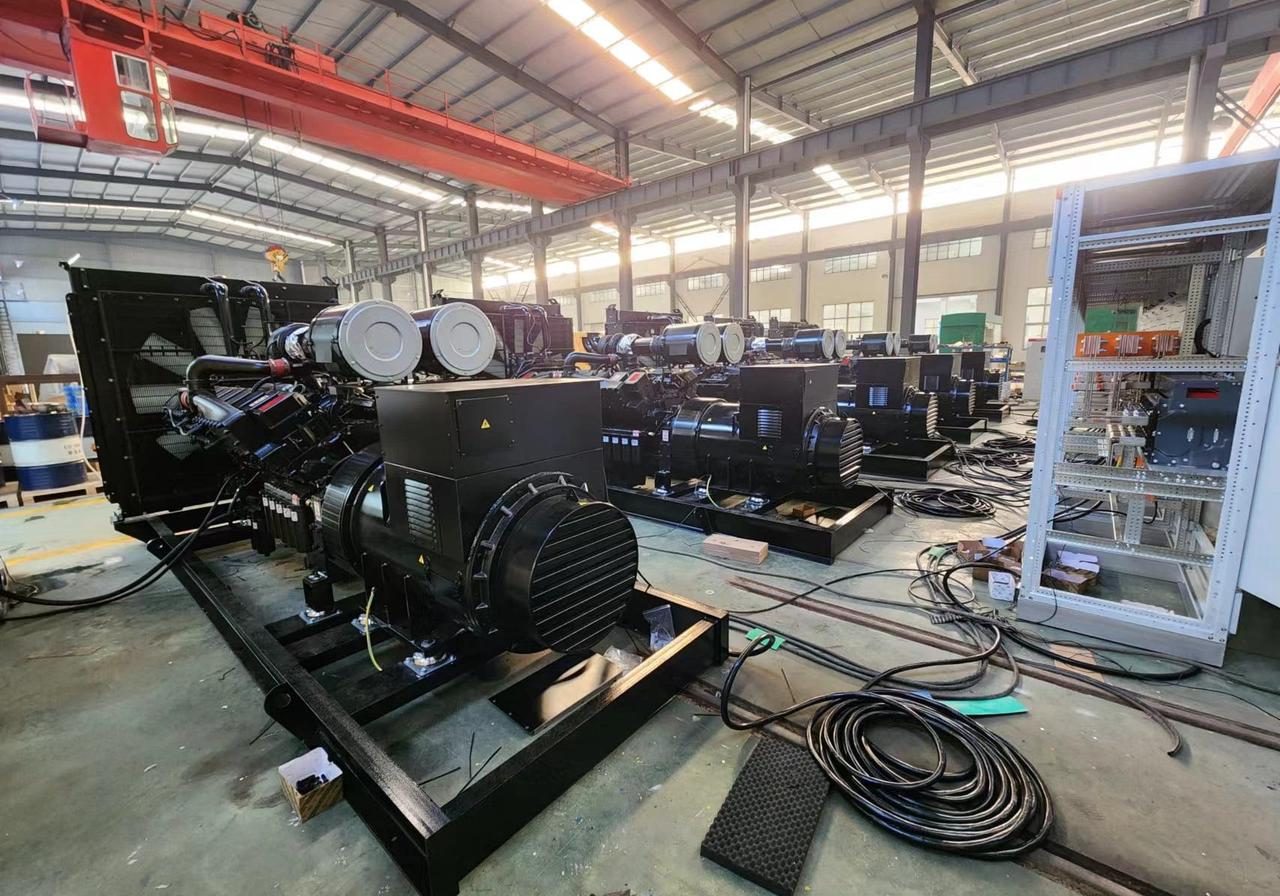

6c90db68-696f-423c-bb82-7f7403997150

Haifeng Power’s Tailored Solution

  • 5 × HF-1000GF Diesel Generator Sets

    • Engine: Cummins KTA50-G3 (renowned for stability and durability)

    • Alternator: Stamford HCI634F with PMG excitation and AVR regulation

    • Operating Mode: Auto Start, Auto Parallel, Auto Load Share

  • Output: 400/230V, 3-phase, 50Hz

  • Installation: Open-type with external soundproof enclosure integrated into the facility layout



  • 5 Synchronization Panels equipped with:

    • DEIF AGC-150 series controllers

    • Automatic synchronization and load sharing

    • Redundancy rotation and fault bypass

    • Seamless integration with grid via ATS/MTS

  • Communication: Modbus TCP/RTU protocol, fully compatible with SCADA/BMS systems



  • Each unit features a 1000L base fuel tank, supporting 8–10 hours of continuous full-load operation

  • Central fuel system connection ports reserved for optional main tank integration

  • Automatic fuel level monitoring and low-fuel alarms ensure uninterrupted performance



  • Controllers support Ethernet/4G remote access modules

  • Site operators can monitor runtime, load, fault history, and fuel level via remote web interface or mobile app

  • Modbus/CAN bus communication enables seamless integration with centralized BMS/SCADA platforms
